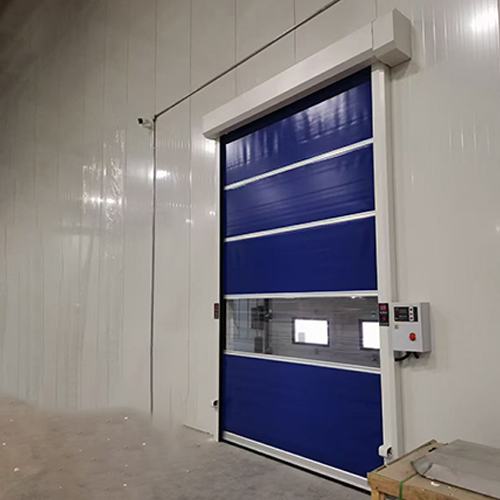

Energy Efficient Industrial High Speed Door For Textile Manufacturing
Our Industrial High Speed Door is engineered for textile manufacturing facilities, where dust control, temperature stability, and efficient material flow are crucial. Featuring a smooth, non-porous curtain and tight-sealing structure, it prevents contamination from fibers, dust, and airborne particles while ensuring rapid internal logistics. Fast opening and closing speeds help maintain consistent environmental conditions, protecting sensitive fabrics and equipment.
Product Specifications:
| Parameter |
Description |
| Material |
PVC curtain / Galvanized steel / Stainless steel |
| Max Door Size |
Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm |
| Operating Speed |
Opening Speed: 0.8-2.0 m/s (adjustable); Closing Speed: 0.5-0.8 m/s (adjustable) |
| Curtain Material |
0.8/1.2/1.5/2.0 mm thick curtain, color options: Blue, Orange, Gray |
| Motor Power |
0.75-1.5KW (depending on size & speed) |
| Temperature Range |
-10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel) |
| Sealing Performance |
High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for better sealing |
| Wind Resistance |
Max Wind Resistance: Class 6 (can be reinforced to Class 8) |
| Manual Function |
In case of power failure or malfunction, the door can be manually opened with a wrench. |
| Power Requirements |
220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards. |
| Insulation Protection |
IP54 rating, providing water and dust protection, suitable for harsh environments. |
| Switching Methods |
Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control, etc. |
Servo-Controlled High-Speed Operation
For textilemanufacturing, precise and reliable door operation is essential to prevent contamination and workflow disruption.
- Servo Motor System: DSP chip-based closed-loop control ensures smooth, precise, and stable operation.
- High-Frequency Operation: Can handle 1,000+ cycles/day without performance loss.
- Safety Features: LED fault display and reverse wiring protection prevent operational errors.
- Adjustable Speeds: Opening speed up to 2.0 m/s, closing speed 0.8 m/s, customizable for production requirements.
This system ensures efficient, safe, and contamination-controlled access, critical for high-quality textile production.
Product Advantages
Clean & Controlled Production Environment
- Minimizes dust, lint, and static particles in textile production
- Maintains stable airflow between production zones
High-Speed & Efficient Operation
- Reduces waiting time for materials, personnel, and automated systems
- Supports high-frequency operations, ensuring smooth workflow
Energy Saving & Temperature Control
- Tight sealing reduces air loss, maintaining climate-controlled environments
- Helps reduce energy costs in temperature-sensitive areas
Safety & Reliability
- Infrared sensors and soft bottom edge protect personnel and equipment
- Servo motor system ensures precise, smooth, and safe operation
Durable & Low Maintenance
- Resistant to wear, corrosion, and dust accumulation
- Long-lasting materials suitable for continuous industrial use
Unique Advantages in Textile Manufacturing
- Maintains Product Quality: Prevents dust and fiber contamination, ensuring high-quality textile output.
- Optimizes Workflow: Fast door operation reduces waiting time for carts, forklifts, and personnel.
- Temperature & Humidity Control: Maintains consistent conditions critical for sensitive fabrics.
- Customizable Options: Available in various sizes with optional transparent panels for visibility and monitoring.
FAQ
What is the recommended maintenance for the Industrial High Speed Door?
Inspect the motor, sensors, and door curtain regularly, and clean the curtain surface to prevent fiber and dust buildup.
Can the door be integrated with existing automation systems?
Yes, it can integrate with factory automation, access control, and safety sensor systems.
What sizes and materials are available?
Doors are offered in standard and custom dimensions, with durable PVC, reinforced fabric, or steel-curtain options suitable for textile environments.
How does it improve energy efficiency?
Rapid opening/closing and a tight seal reduce air exchange, helping maintain temperature and humidity, which lowers HVAC energy consumption.
