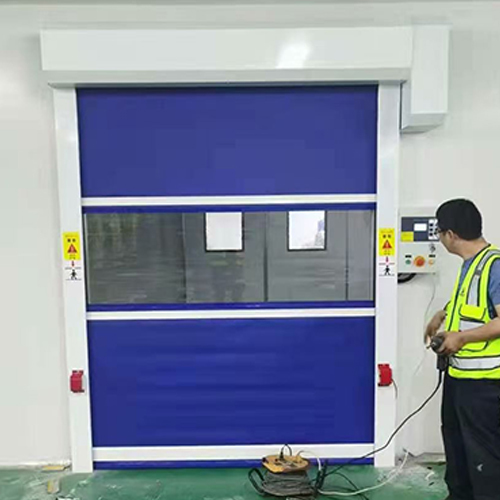

Enhanced Reliability Industrial High Speed Door For Electronics Manufacturing
The Industrial High Speed Door for Electronics Manufacturing is specifically designed for environments where cleanliness, static control, and production efficiency are critical.
In electronics factories, such as PCB assembly, semiconductor processing, and precision component manufacturing, controlling dust, airflow, and cross-contamination is essential. This high-speed door features a smooth, anti-dust curtain, tight sealing system, and fast operation, helping maintain clean production zones while supporting high-frequency personnel and material movement.
Product Advantages
- Clean & Dust-Controlled Environment
- Improved Production Efficiency
- Enhanced Safety & Reliability
- Energy Saving & Cost Reduction
Product Features
-
High-Speed Operation: Opening speed up to 1.5 m/s, closing speed 0.6 m/s
-
Smooth & Hygienic Curtain: PVC anti-dust curtain, thickness 0.8–1.5 mm
-
Tight Sealing System: Side brush seals + bottom soft safety edge or airbag
-
Servo Control System: Precise positioning, smooth start/stop, LED fault display
-
Static Control Options: Optional anti-static curtain material
-
Flexible Activation Methods: Push button, radar sensor, ground loop, pull rope, remote control
-
Emergency Operation: Manual opening during power failure
-
Frame Options: Galvanized steel (standard), stainless steel optional
Applications
-
Electronics manufacturing plants
-
PCB assembly workshops
-
Semiconductor production areas
-
SMT production lines
-
Precision component and device assembly rooms
Product Specifications:
| Parameter | Description |
| Material | PVC curtain / Galvanized steel / Stainless steel |
| Max Door Size | Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm |
| Operating Speed | Opening Speed: 0.8-2.0m/s (adjustable); Closing Speed: 0.5-0.8 m/s (adjustable) |
| Curtain Material | 0.8/1.2/1.5/2.0 mm thick curtain, color options: Blue, Orange, Gray |
| Motor Power | 0.75-1.5KW (depending on size & speed) |
| Temperature Range | -10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel) |
| Sealing Performance | High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for better sealing |
| Wind Resistance | Max Wind Resistance: Class 6 (can be reinforced to Class 8) |
| Manual Function | In case of power failure or malfunction, the door can be manually opened with a wrench. |
| Power Requirements | 220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards. |
| Insulation Protection | IP54 rating, providing water and dust protection, suitable for harsh environments. |
| Switching Methods | Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control, etc. |
In electronics manufacturing, even small dust particles can affect product quality.
-
Smooth PVC Curtain: Minimizes dust adhesion and allows easy cleaning
-
Fast Opening Speed: Up to 1.5 m/s, reducing air exchange time
-
Tight Sealing: Side brush seals and bottom safety edge reduce particle movement
-
Stable Servo Control: Ensures precise operation without vibration
This combination helps maintain stable clean conditions while keeping production efficient.
Contact Us:
Email:yohao260105@gmail.com
Whatsapp:+8618021983369
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
FAQ
Q1: Why are high speed doors important in electronics manufacturing?
They help control dust, airflow, and contamination while ensuring fast access between production zones, protecting sensitive electronic components.
Q2: Can this door be used in clean or semi-clean rooms?
Yes. The smooth surface, tight sealing, and optional anti-static materials make it suitable for clean and controlled environments.
Q3: Does the door support high-frequency operation?
Yes. The servo motor system supports hundreds to over 1,000 cycles per day with stable performance.
Q4: Can the door be customized for different factory layouts?
Yes. Door size, materials, activation methods, safety systems, and static-control options can all be customized.
